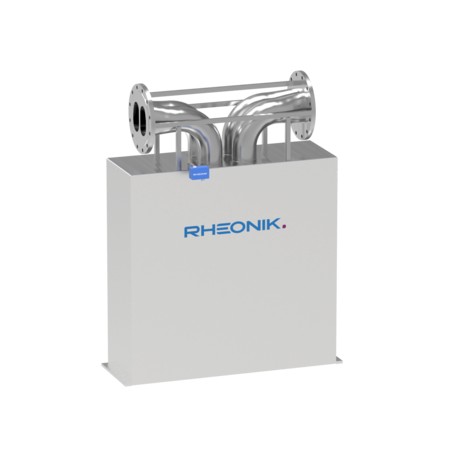

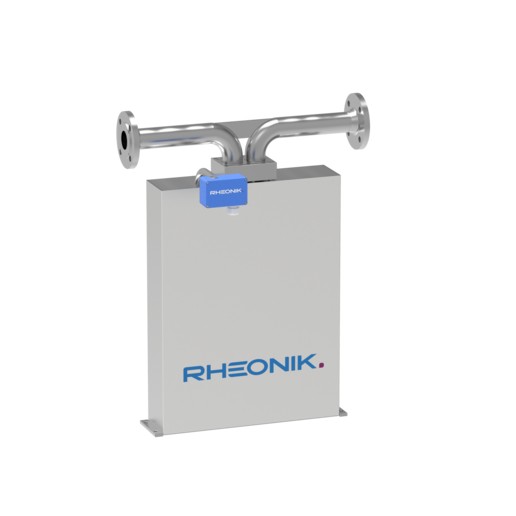

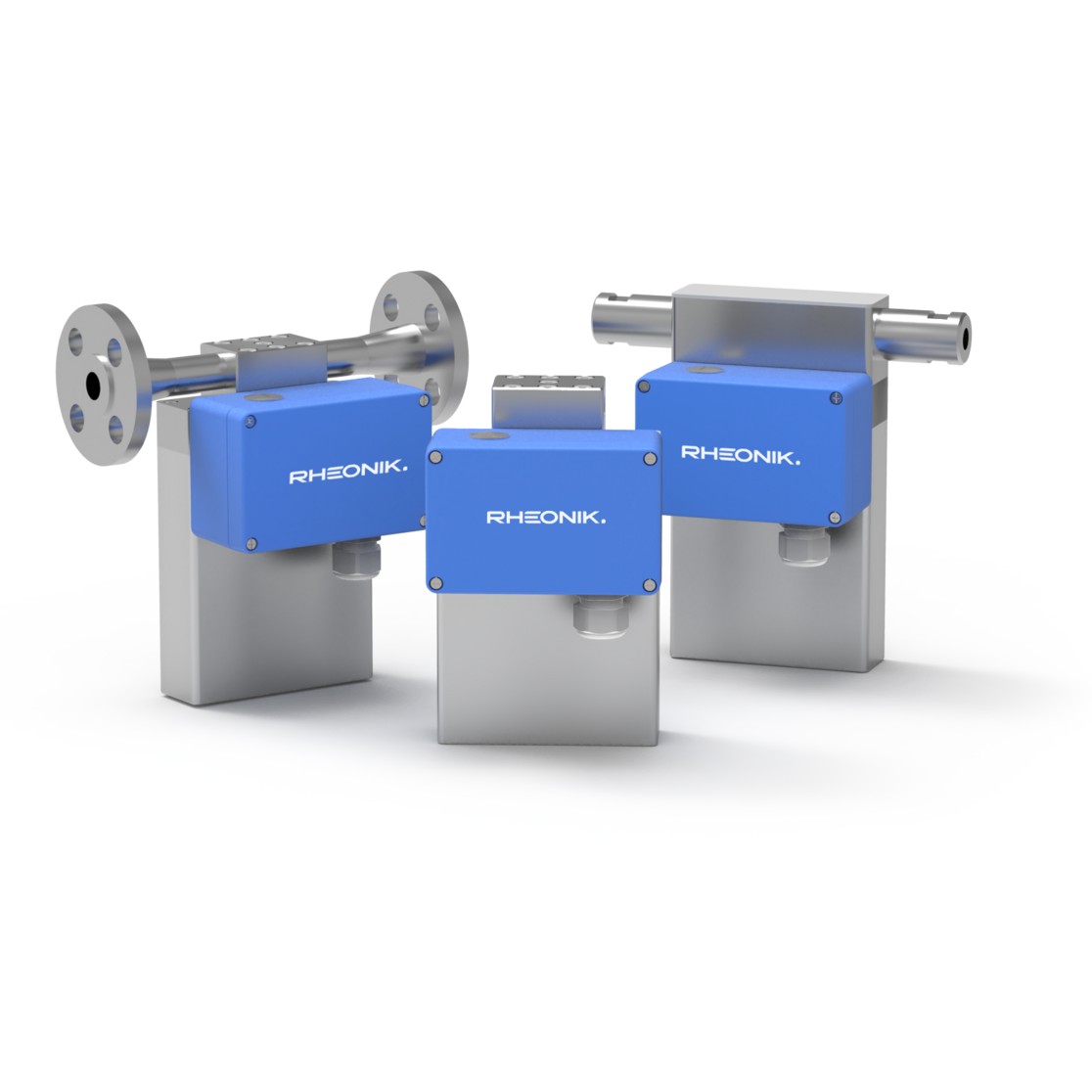

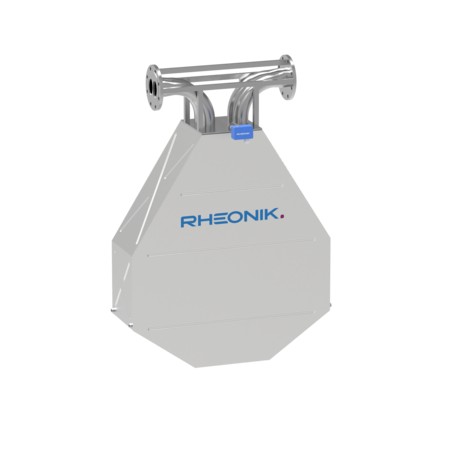

Rheonik Coriolis mass flow sensors deliver highly accurate flow measurement for liquids and gases from 0.001 to 30,000 kg/min. Using advanced Omega technology, they achieve measurement accuracy down to ±0.05%, a turndown ratio greater than 100:1, and reliable performance at pressures up to 1,722 bar. Exceptional zero‑point stability ensures precise and repeatable results in extreme conditions, including high or low temperatures, very low flow rates, high pressure, and fast dosing or filling applications.

The unique torsion bar/mass bar design supports a wide range of tube materials and wall thicknesses, including exotic alloys for corrosive fluids. With AnyPipe and AnyFlange customization, Rheonik meters integrate easily into existing piping systems. Compact, rugged, and maintenance‑free, Rheonik Coriolis flow meters offer the smallest footprint, long service life, and the lowest total cost of ownership.

Unique Features:

• Up to 1722 bar (24,969 psi)
• Connection range from ¼“ up to 12”
• Flow range from 0.001 kg/min (0.002 lb/min) to 30,000 kg/min (66,139 lb/min)
• Wide turndown > 100:1
• Up to 4000 measurement cycles/sec
• Up to 0.05 % uncertainty
• Exotic materials available
• Assurance Factor® at any time

Application areas

• Renewable Energy – Rheonik Coriolis mass f low meters lead the f ield in renewable energy. Especially for hydrogen.
• Oil & Gas – The oil and gas industry demands the highest accuracy and repeatability – Rheonik delivers.
• Marine – Rheonik Coriolis mass flow meters are installed worldwide on ships for bunkering and fuel consumption measurements.
• Hydraulics – Hydraulics applications require high pressure, rapid response sensors. Rheonik is the ideal choice.
• Pharmaceutical – Highly regulated, it has a need for measurement performance and traceability.
• Petrochem – Chemical processing involves a wide range of different substances, many of which are hazardous to health.
• Automotive – Compact, accurate and reliable flow solutions for major automotive manufacturers, their suppliers and service station operators.
• Machinery – Repeatable batching and filling in compliance with international industrial standards.
• Power – Power plant operators are constantly looking for ways to improve efficiency and output.
• Food & Beverage – From alcoholic spirits to chocolate, each and every one requires precision flow measurement.
• Paint & Coating – Require metering capable of handling thick, “sticky” and often abrasive materials.
• Plastics – Rheonik Coriolis mass f low meters are the perfect choice for applications throughout the plastics industry.
