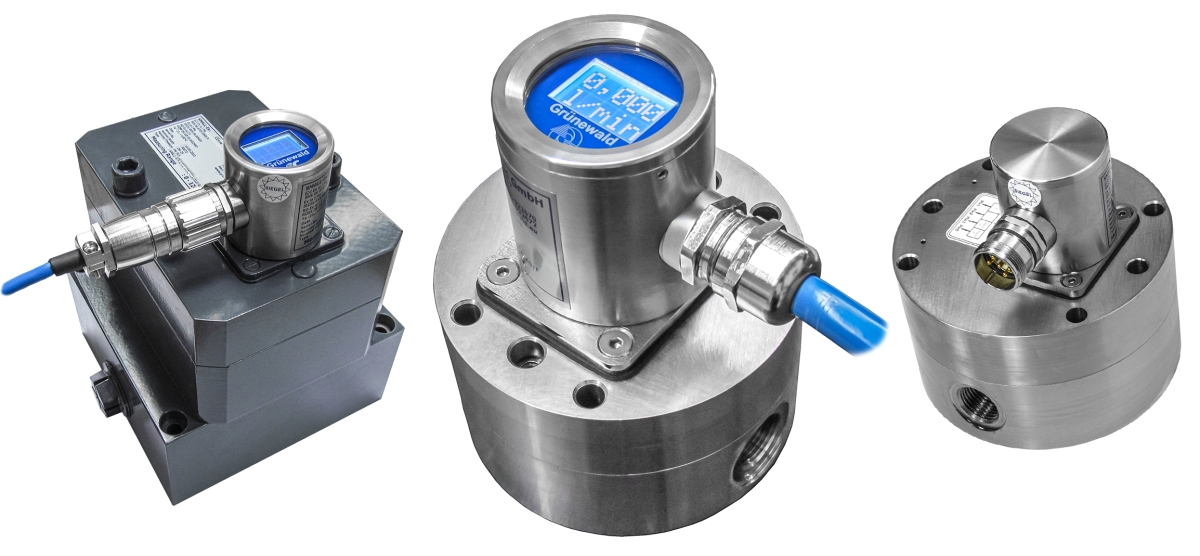

Explosion-proof Gear flowmeter SMALL-Ex® series measuring instruments are intrinsically safe volume flow measuring instruments for pure oil. In the volume flow measuring instrument is an arrangement of gears, whose revolutions are counted by an impulse sensor. They can be equipped with integrated pressure and/or temperature measuring sensors.

The volume flow will transmit as analogous signal with a signal range of 5-15 Hz, 0/4-20 mA, *-** V (max. 10 V DC; at a power supply of min. 7.5 V DC) or CAN-Bus. Moreover, possible is a “pulse output”, up to max. 1kHz, at which the volume can be counted because a defined amount of oil flows through the device per pulse.

The volume flow measuring instrument for oil can be used as an instantaneous display of liters per minute or impulse output as “counting”.

The oil is passed through gear-wheels so, per count, a defined amount of oil flows. Thus, the instrument is independent of viscosities or temperatures. This value will be transmitted via an arbitrary signal and also optionally displayed in the illuminated display on site.

This measuring instrument can be used e.g. in hydraulic systems up to 400 bar for measurement of pump performance or (the impulse version) for displacement measurement of hydraulic cylinders.

Application Areas:
– Pure oil
– For use in explosive areas
– System pressures up to 400 bar
– Combination with pressure and / or temperature possible

Products are certified by:

• ATEX
• IECEx
• IECEx ANZ
• EAC Ex
• MSHA
• SIL 2
