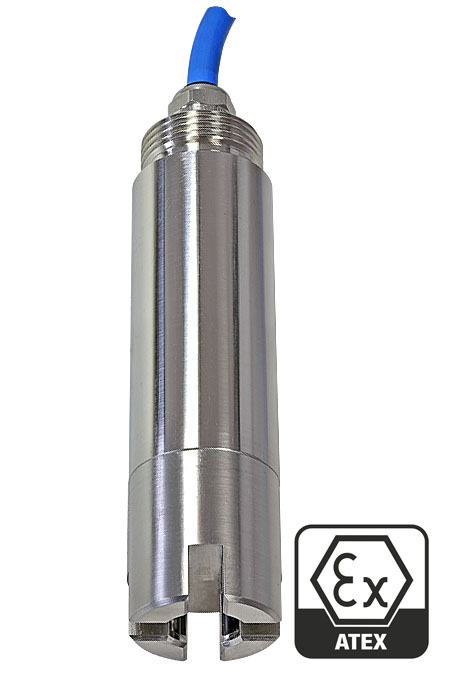

Turbidity sensor is a device used to measure the cloudiness or haziness of a liquid (turbidity) by detecting the amount of light scattered or absorbed by suspended particles. They are crucial for assessing water quality across various applications.

Technical Features:

• Input: turbidity measurement (ISO 7027-1)
• Output: 4…20 mA; 0…10 V programmable; 3-wire
• Measuring range: 0…100 g / l ≙ 0…300 NTU
• Supply: 12…30 VDC
• Working temperature: 0 – 50 °C
• Operating pressure: max. 6 bar
• Electr. Connection: cable
• Protection: IP68
• Dimensions: 166 ± 0.3; Ø 37.8 ± 0.1
• Material: 1.4571
• Ex approval: ATEX

Application Areas:

• Drinking water treatment
• Wastewater treatment
• Environmental monitoring
• Industrial processes
• Aquaculture and agriculture
