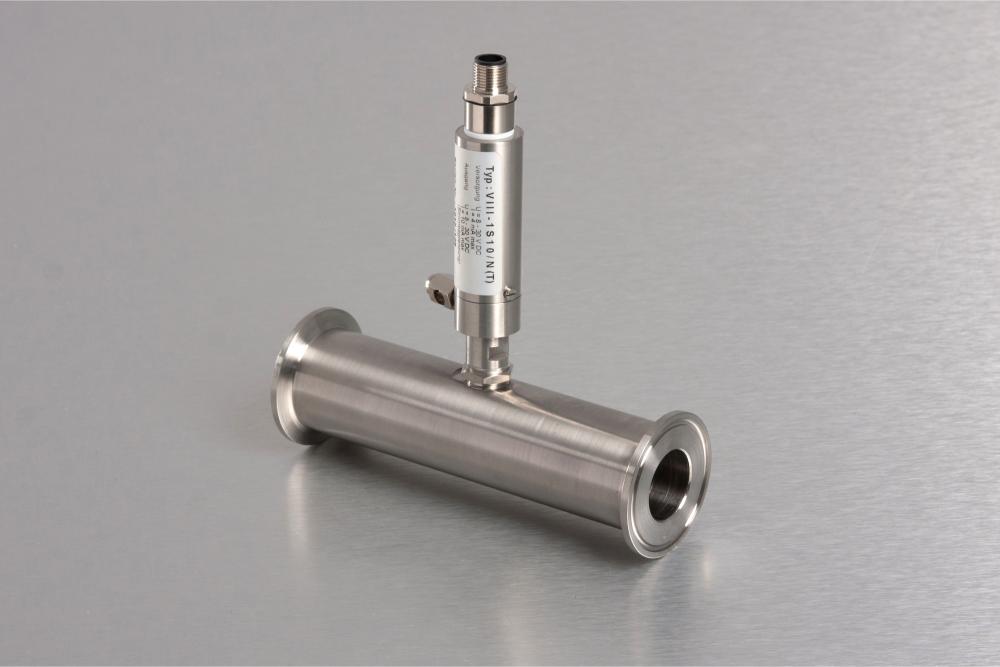

Turbine flowmeter for applications in even the most challenging conditions in the oil, petrochemical and chemical industries.

The basic system in the VTR series comprises a rotor, the housing body and a measurement pick-up. Thanks to the specific internal diameter, the speed of the turbines is directly proportional to the flow.

All flow meters in the VTR series are individually calibrated. A wide range of electronic evaluation and display units are also available to our customers.

Performance data

• Flow range 110 l/h to 4500 m³/h
• Pressure range up to 250 bar
• Temperature range – 40°C to +120°C
• Frequency range up to 1300 Hz
• Viscosity range 1 to 5 cSt

Applications

• Water-like substances
• Water
• Oils
• Petrochemicals
