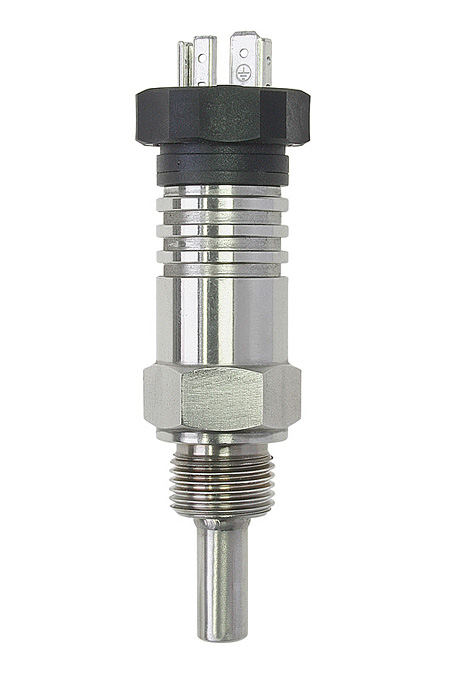

Temperature Switch Type MKTL

Technical Features:

• Switching temperature: 5…180 °C
• Switching element: bimetal, creep action
• Contact: normally closed, normally open
• Length: 27…1000 mm
• Material: thermowell, body stainless steel 1.4571
• Process connection: 3/8″, 1/2″, 3/4″, 1″, 3/8″ NPT, 1/2″ NPT
• Accuracy: +/- 5 K
• Connection: several plugs, cable
• Protection: at least IP 65

Screw-in Temperature Switch Type METL-L

Technical Features:

• Sensor: RTD Pt 100
• Potting: Electronics potted
• Material towards medium: stainless steel 1.4571
• Process connection: 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1/4″ NPT, 3/8″ NPT, 1/2″ NPT
• Output: open collector, 30 V, 200 mA
• Indication: LED red
• Accuracy: 0,5 °C  /  0,2 °C
• Switch point adjustment: with magnet
• Electrical connection: M12x1, 8-pole
• Protection: at least IP65

Application Areas:

• Self-operated temperature limiter for machines/devices (e.g. hydraulics, motors, compressors)
• Used across industrial applications, connectable to SPS digital inputs
• Easy on-site switch point adjustment, suitable for higher requirement applications
