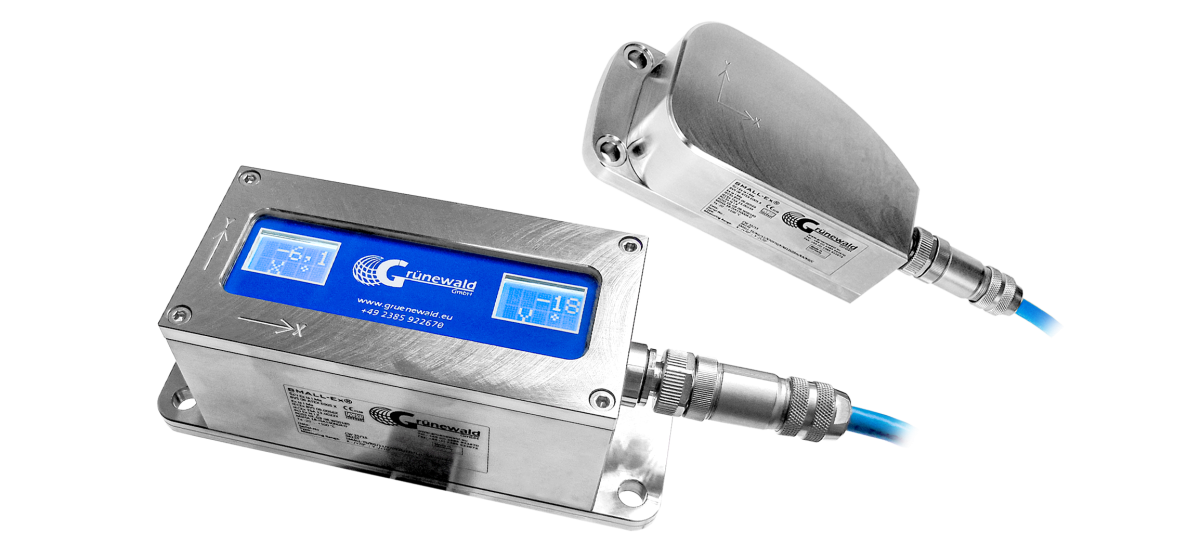

The Inclinometer from the SMALL-Ex series is an instrument around the inclination angle e.g., on machines. It was designed to be used on mining machines such as cut-cut machines, roller loaders, drilling trucks, continuous miners and others.

Due to the appropriate material use (stainless steel), it has been very robust and developed for extreme use on mining machines. As an option, the device can be equipped with one illuminated display per movement axis. This SMALL-Ex series device is also available with a wide variety of connectors, a specific measuring range and different output signals. Should you prefer a special plug, we will gladly check the usability.

The measuring instrument is optionally equipped with a 1- or 2-axis measurement and can be operated up to max. +/- 70 measurements with a resolution of 0.1°.

Products are certified by:

• ATEX
• IECEx
• EAC Ex
• SIL 2

Application Areas:
For used on mining machines such as cut-cut machines, roller loaders, drilling trucks, continuous miners and others.
